IPS Tft Display Screen 2 inch 240 320 Wide-Temp Lcd For Medical Equipment

Product Description:

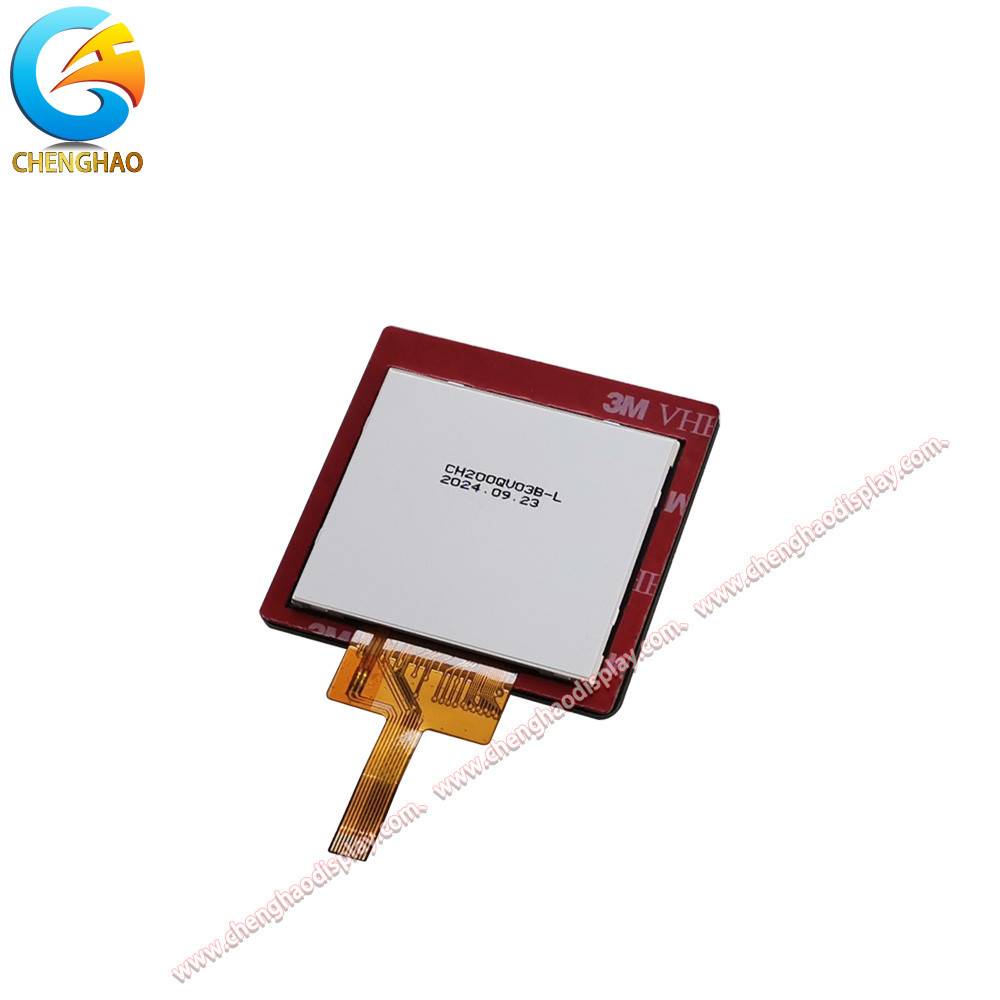

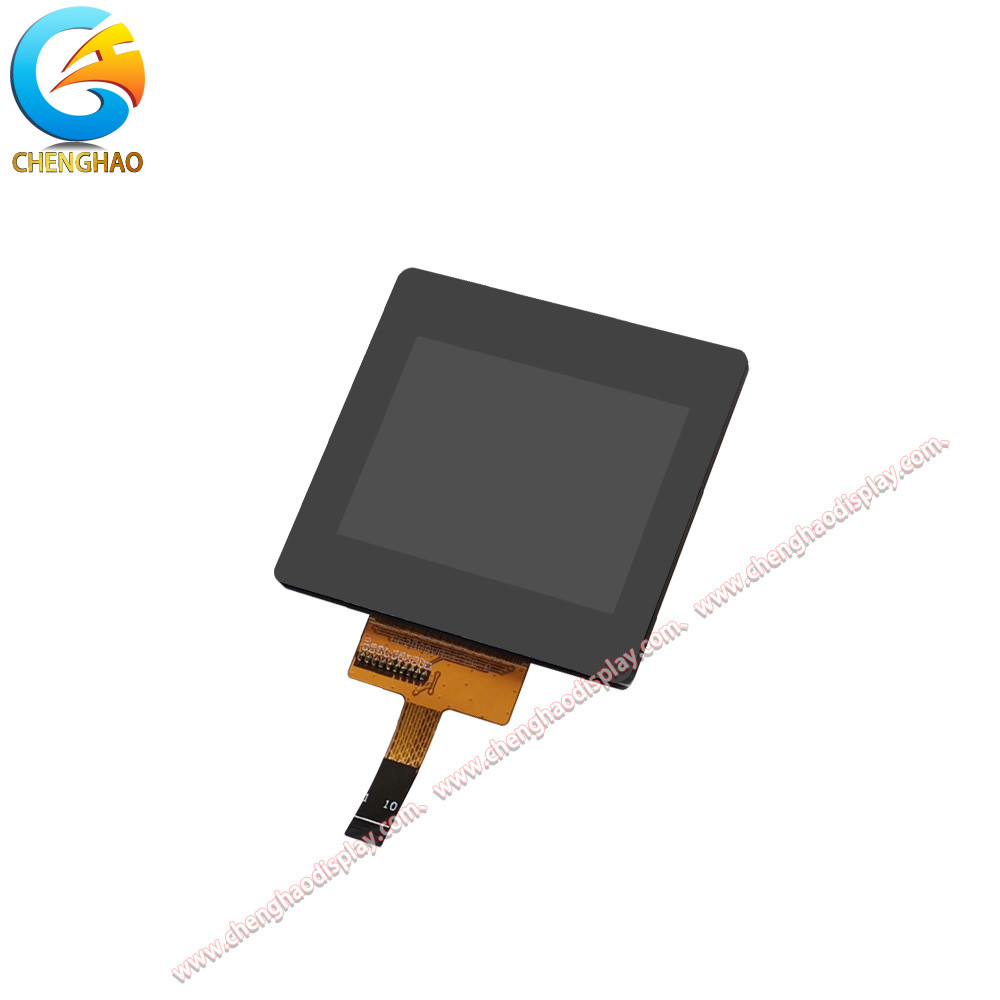

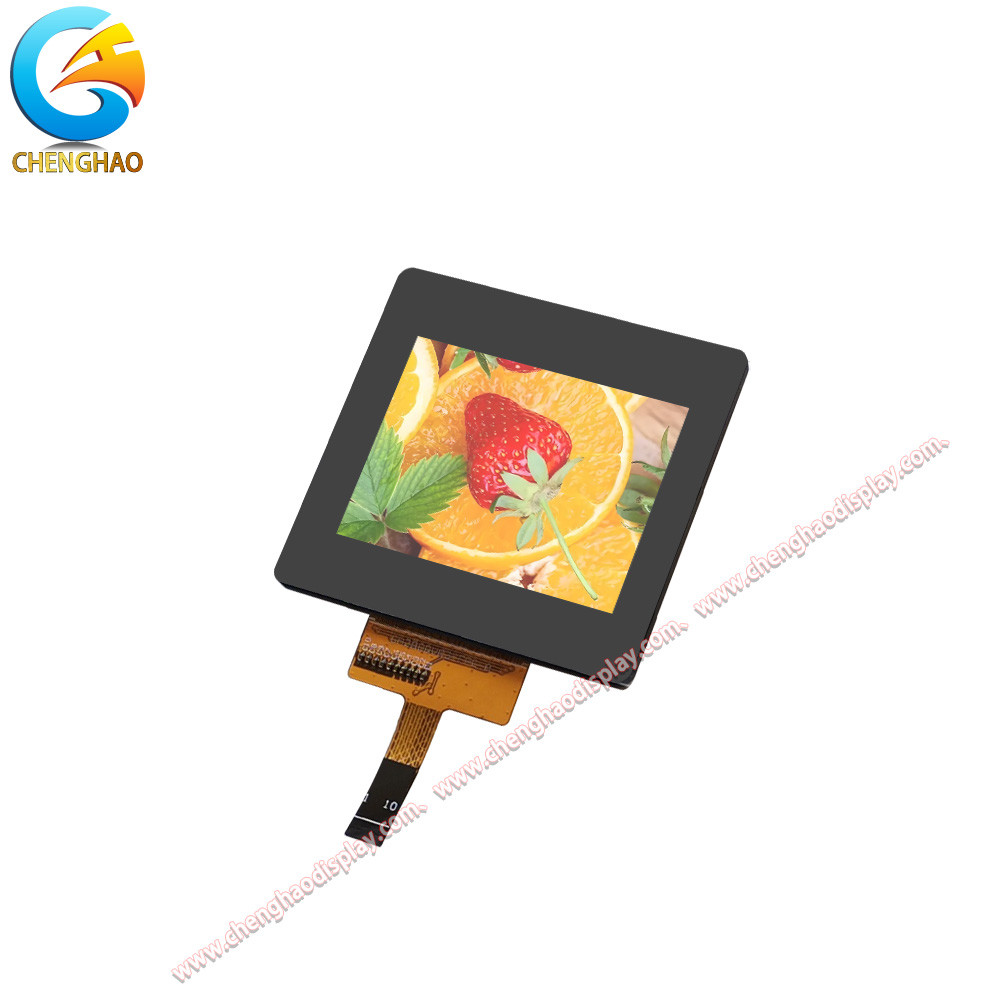

		The CH200QV03B-L is a high-performance 2-inch TFT LCD display module designed by Chenghao Optoelectronic, developed to meet the needs of various applications. The module has an external size of 53.3 x 50.5 x 4.28 mm, a viewable area of ​​44.85 x 39.5 mm and an effective display area of ​​40.8 x 30.6 mm, suitable for use in devices with limited space. The module uses advanced IPS (In-Plane Switching) technology to provide a wide viewing angle display effect, with a viewing angle of 85/85/85/85, ensuring that users can get consistent color and clarity when viewing from different angles. This feature makes the CH200QV03B-L very suitable for application scenarios such as medical equipment, industrial control and smart home that require high-quality image display. In terms of performance, the CH200QV03B-L has a resolution of 240x320 pixels, which can provide delicate image display and ensure that users can read information clearly during use. The module has a brightness of up to 1000 cd/m², ensuring good readability in strong light environments, and is suitable for outdoor and strong light applications.
In addition, its operating temperature range is -20℃ to 70℃, and its storage temperature range is -30℃ to 80℃, ensuring its stability and reliability under various extreme environmental conditions. CH200QV03B-L supports SPI interface, which is convenient for connection with various controllers and systems, simplifying the integration process. This module not only excels in performance, but also takes into account the user's customization needs. Chenghao Optoelectronic provides a variety of customization services, and customers can adjust the shape and structure of FPC, modify the backlight brightness, define the LCD interface, etc. according to specific needs. This flexibility enables CH200QV03B-L to be widely used in multiple industries, including artificial intelligence, IoT devices, automotive applications, etc. In general, CH200QV03B-L is an LCD display module that combines high performance, flexibility and reliability, suitable for a variety of application scenarios. Whether in the field of industrial control, medical equipment or smart home, CH200QV03B-L can meet customer needs with its excellent display effects and customized services. Choosing CH200QV03B-L, you will get a high-quality display solution to help your project succeed.

Features:

Compact design: With dimensions of 53.3 x 50.5 x 4.28 mm, the CH200QV03B-L is suitable for space-constrained applications and can be easily integrated into small devices.

High resolution: The module provides a resolution of 240x320 pixels, ensuring clear and delicate images, suitable for applications that require high-quality display.

IPS technology: Using IPS (In-Plane Switching) technology, it provides wide viewing angle display, with a viewing angle of 85/85/85/85, ensuring color consistency and clarity.

High brightness display: With a brightness of up to 1000 cd/m², it can still be clearly read in strong light environments, suitable for outdoor and strong light applications.

Wide operating temperature range: The operating temperature range is -20℃ to 70℃, and the storage temperature range is -30℃ to 80℃, ensuring stability and reliability in various extreme environments.

SPI interface: Supports SPI interface, which is convenient for connection with a variety of controllers and systems, simplifying the integration process.

Customization capability: We provide a variety of customization services. Customers can adjust the FPC shape, backlight brightness, LCD interface, etc. according to specific needs to meet the special requirements of different applications.

Technical Parameters:

Applications:

CH200QV03B-L is a high-performance 2-inch TFT LCD module that can play an important role in multiple industries due to its excellent display effect and wide applicability. The following are the main application areas of this product:

Industrial Automation: In industrial control systems, CH200QV03B-L can be used for operating panels, monitoring equipment status, and displaying real-time data. Its high brightness and wide viewing angle characteristics allow operators to clearly read information in different working environments, improving work efficiency and safety. In addition, the module's high and low temperature resistance allows it to operate stably in extreme environments, making it suitable for various industrial equipment such as PLC (Programmable Logic Controller) and HMI (Human Machine Interface).

Medical Equipment: CH200QV03B-L is ideal for medical equipment such as heart rate monitors, blood glucose meters, and portable ultrasound devices. Its high resolution and high brightness characteristics ensure the clarity and readability of medical images, helping medical staff to better diagnose and monitor. In medical environments, the reliability and durability of display modules are crucial, and CH200QV03B-L can meet these requirements to ensure the accuracy of equipment at critical moments.

Smart Home: In smart home products, CH200QV03B-L can be used for smart control panels, display interfaces of home appliances, etc. Its compact size and customization capabilities allow it to be easily integrated into various home devices to enhance the user experience. Whether it is a smart refrigerator, smart coffee machine or home security monitoring system, CH200QV03B-L can provide clear visual feedback for easy user operation.

In-vehicle applications: The high brightness and wide temperature range of the module make it an ideal choice for in-vehicle display systems. Whether it is in-vehicle navigation, central control display or rear seat entertainment system, CH200QV03B-L can provide clear visual effects to ensure driving safety and passenger entertainment experience. Its durability and reliability enable it to work normally under various environmental conditions in the car.

IoT devices: With the development of IoT technology, CH200QV03B-L has also been widely used in smart sensors, monitoring equipment and other IoT applications. Its flexible interface and customization options enable it to adapt to different IoT solutions and meet the needs of various applications such as smart homes and smart cities.

Consumer electronics: In consumer electronics products such as digital photo frames, portable game consoles and other small display devices, the high resolution and color performance of CH200QV03B-L can meet users' high requirements for visual effects. Its compact design makes it suitable for various portable devices to enhance the user experience.

Security systems: The module is also suitable for security identification devices such as access control systems and attendance clock machines. Its clear display and reliable performance can effectively enhance the user experience and system security.

Customization:

The CH200QV03B-L LCD display module not only excels in performance, but also provides a variety of customization options to meet the specific needs of different customers. The following are the main customization contents of this product:

• FPC shape and structure customization

CH200QV03B-L allows customers to redesign the shape and structure of the FPC (flexible printed circuit) according to the specific requirements of their equipment. This flexibility allows the module to perfectly adapt to various installation environments, ensuring better compatibility and reliability.

• Backlight brightness adjustment

Customers can choose different backlight brightness according to actual application needs. The backlight assembly provided by CH200QV03B-L can achieve a brightness of up to 1000 cd/m², and customers can adjust it according to the lighting conditions of the use environment to ensure optimal readability and visual effects.

• Module interface customization

This display module supports a variety of interface types, including SPI, MCU, RGB, MIPI, LVDS, etc. Customers can choose the appropriate interface type according to the requirements of their controller to ensure seamless connection between the module and the system.

• Touch panel design

For applications that require touch interaction, CH200QV03B-L provides two touch solutions: capacitive touch and resistive touch. Customers can choose the appropriate touch technology according to the usage scenarios and user needs of their devices to ensure a good user experience.

• Functional customization

CH200QV03B-L can design specific functional modules according to the customer's actual application scenarios. These features may include sunlight readability, anti-glare design, wide viewing angle, high resolution, and human-computer interaction. This customization function enables the product to better meet the needs of specific industries, such as medical, industrial control, and consumer electronics.

• Packaging and transportation customization

In addition to the customization of the product itself, Chenghao Optoelectronic also provides customized services for packaging and transportation methods. Customers can choose different packaging materials and transportation methods according to their needs to ensure the safety and integrity of the product during transportation.

• Sample support

In order to help customers evaluate customization options before making a final decision, Chenghao Optoelectronic provides sample support. Customers can apply for samples for testing to ensure that the customized CH200QV03B-L module can meet the specific requirements of their project.

With these customization options, the CH200QV03B-L demonstrates its flexibility and adaptability in meeting customer needs, enabling it to be widely used in multiple industries. Whether it is industrial, medical, smart home or consumer electronics, the CH200QV03B-L can provide tailored solutions to help customers succeed

FAQ:

Q: What is the brand name of the Small LCD Touch Screen?

A: The brand name is Chenghao Optoelectronic.

Q: What is the model number of the Small LCD Touch Screen?

A: The model number is CH200QV03B-L.

Q: What certifications does the Small LCD Touch Screen have?

A: The Small LCD Touch Screen is certified with RoHS, CE, and FCC.

Q: What is the minimum order quantity for the Small LCD Touch Screen?

A: The minimum order quantity is 100 pieces.

Q: What are the packaging details for the Small LCD Touch Screen?

A: All products are packed in the right way to keep them safe. For small sizes, we use tray + carton, and for bigger sizes, we use foam slot + carton. We also design packages according to customers' requirements.
