Aperçu ProduitsModule d'affichage d'OLEDSunlight Readable Oled 4 Inch 1080*1240 High Resolution For Outdoor Electronic Device
Sunlight Readable Oled 4 Inch 1080*1240 High Resolution For Outdoor Electronic Device
Sunlight Readable Oled 4 Inch 1080*1240 High Resolution For Outdoor Electronic Device Sunlight Readable Oled 4 Inch 1080*1240 High Resolution For Outdoor Electronic Device Sunlight Readable Oled 4 Inch 1080*1240 High Resolution For Outdoor Electronic Device
Contactez

Sunlight Readable Oled 4 Inch 1080*1240 High Resolution For Outdoor Electronic Device

Minimum Order Quantity : NO MOQ Packaging Details : All The Products Are Packed In Right Way To Keep It Safe. For Small Sizes Of Products We Use Tray + Carton, For Bigger Sizes We Use Foam Slot + Carton. We Also Design Packages According To Customers' Requirements
Delivery Time : 3~5 Working Days Payment Terms : TT Or Others
Supply Ability : 300K Pcs/month
Nom de marque: Chenghao Optoelectronic Certification: CE 、RoHS、FCC
Model Number: CH400OL001A Document: Brochure du produit PDF

Détail Infomation
Interface OLED: MIPI Température de fonctionnement: -10 ~ +60 °C
Taille de la zone active: 65,448*75,144 millimètres Numéros de broches FPC: 38
Température de stockage: -20 ~ +70 ℃ Direction de visualisation: Gratuit
Taille de l'écran: 3.92 pouces Type d'affichage: Écran AMOLED de 3,92 pouces
Mettre en évidence:

Sunlight readable OLED display

,

4 inch high resolution OLED

,

Outdoor electronic device OLED module

Description de produit

Product Description:


The CH400OL001A is a 4-inch AMOLED display module (3.92-inch effective area) designed for superior visual performance in outdoor electronic devices. Featuring a native 1080x1240 high resolution, this module ensures sharp and clear visualizations of complex data and high-definition graphical interfaces in professional environments. Employing active-matrix OLED technology, the display achieves exceptional contrast and 600 cd/m² brightness, making it an attractive "sunlight-visible OLED" solution for semi-outdoor and high ambient light applications.

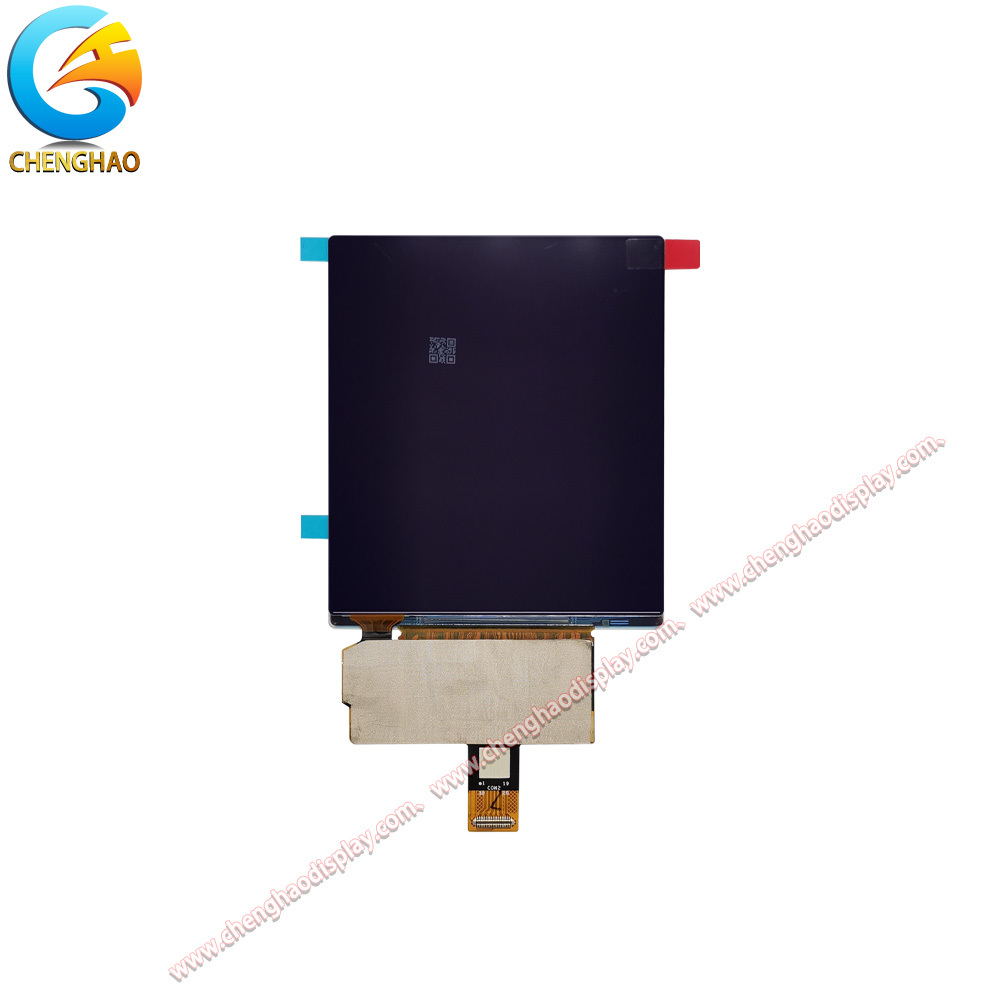

Sunlight Readable Oled 4 Inch 1080*1240 High Resolution For Outdoor Electronic Device 0

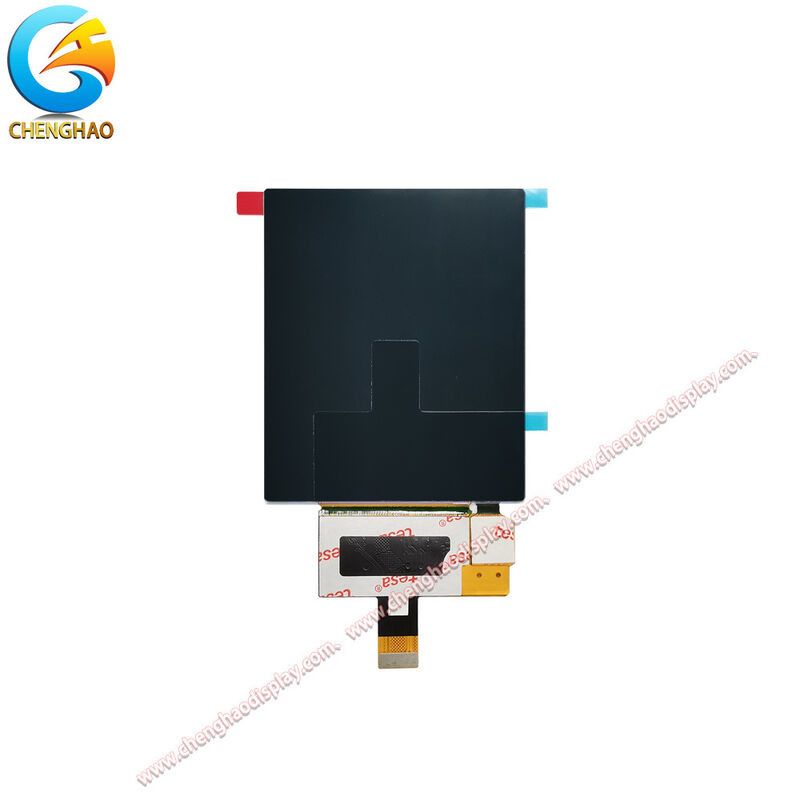

Sunlight Readable Oled 4 Inch 1080*1240 High Resolution For Outdoor Electronic Device 1
The self-emissive nature of AMOLED pixels ensures deep blacks and vibrant colors, eliminating the need for a bulky backlight module and achieving an ultra-thin 1.2mm form factor, ideal for compact hardware integration. For seamless interaction, the module integrates an FT*** capacitive touch IC, providing a responsive and durable user interface for handheld instruments. Data transmission is processed via a high-speed MIPI interface, optimizing power efficiency, crucial for battery-powered portable devices. With its full-viewing angle and RoHS compliance, the CH400OL001A is the top choice for engineers seeking a space-saving display solution that does not sacrifice optical clarity or reliability under harsh conditions.


Features:


(1)High-Resolution Clarity: The 1080x1240 resolution provides a high-PPI viewing experience, crucial for reading fine text and detailed technical charts in outdoor settings.
(2)Sunlight-Enhanced Performance: With a brightness of 600 nits and AMOLED's inherent high contrast, this module maintains readability under challenging lighting conditions.
(3)MIPI High-Speed Interface: Features a MIPI 4-lane connection to ensure low-latency video streaming and reduced electromagnetic interference (EMI) for portable devices.
(4)Slim & Compact Design: At a maximum thickness of 1.2mm, it significantly reduces the overall footprint of handheld equipment.

Technical Parameters:

Display Type 3.92" AMOLED
Resolution 1080*1240 Dots
Viewing Direction Free
Module Size 67*80*0.7 Mm
OLED Interface MIPI
Operating Temperature -10 ~ +60 ℃
FPC Pin numbers 38
Screen Brightness 600 Cd/m2
Storage Temperature -20 ~ +70 ℃
Screen Size 3.92 Inch

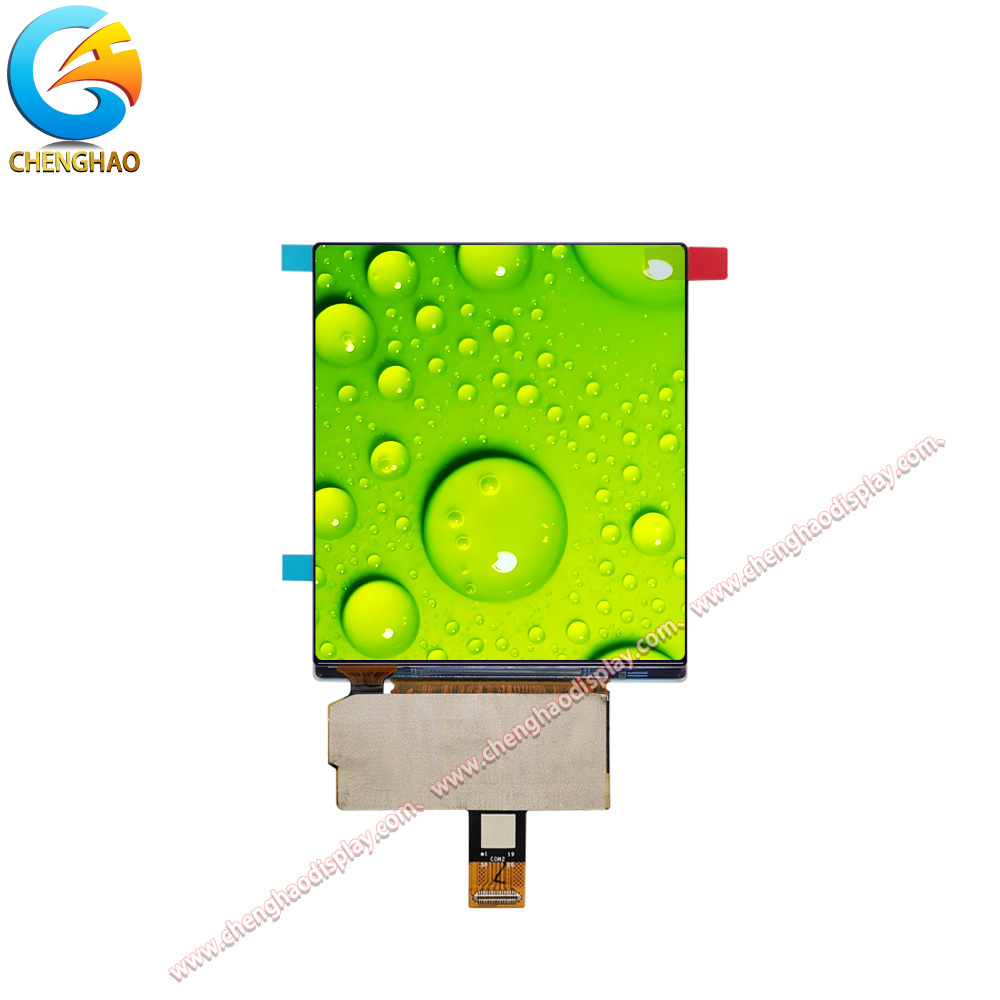

Sunlight Readable Oled 4 Inch 1080*1240 High Resolution For Outdoor Electronic Device 2


Support and Services:

Leveraging our team of 125 engineers and automated production lines, we provide comprehensive B2B support:

  • Standard Compliance: Production within Class 100/1000 clean rooms ensures all modules meet rigorous ISO and RoHS environmental standards.
  • Technical Consultation: Direct access to R&D specialists for MIPI initialization code and hardware integration troubleshooting.
  • Supply Reliability: With a monthly capacity of 10KK-13KK pieces, we guarantee long-term stable supply for your production cycles.
  • Rapid Prototyping: Our Shenzhen base is optimized for preparing samples and trial production orders to accelerate your time-to-market.

FAQ:


Q: Can this OLED be used in direct sunlight?

A: While 600 nits is excellent for high-ambient light, the AMOLED’s high contrast ratio significantly improves the perceived readability compared to standard LCDs. For extreme sunlight, we recommend our Anti-Reflective (AR) coating customization.


Q: What is the benefit of the MIPI interface for outdoor gear?

A: The MIPI interface provides high-speed data transmission with minimal power draw, which is essential for maximizing the battery life of portable outdoor devices.


Q: Is the touch screen compatible with outdoor use?

A: Yes, the FT*** touch IC is designed for reliability. We can further customize the cover glass and sensitivity to ensure it performs well in varied outdoor conditions.
